WA 1+ | location: AUSTRIA | |

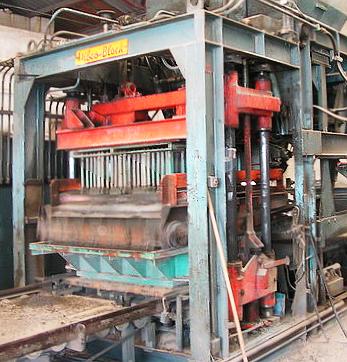

VIBRO BLOCK UMLAUF ANLAGEClosed loop plant type "VIBRO - BLOCK" |
||
1976 |
rarely used!ANOTHER VB 5 |
|
GEBRAUCHTE KREISLAUFANLAGE "VIBRO - BLOCK" VB5 Kreislaufanlage zur Erzeugung von Schalungs- Zwischenwand- Hohlblock- und Deckensteinen. Arbeitsfläche 104 x 104 cm, bestehend aus: 1. 1 BESCHICKERBAND zur Beschickung des Maschinensilos. 2. 1 STATIONÄRFERTIGER Type Vibro - Block VB 5, Brettgröße 1250 x 1200 x 50 mm, Baujahr 1976. 3. 1 AUSTRANSPORT ZUR HUBLEITER 4. 1 HUBLEITER 9 Etagen, Einzelbrettbelegung. 5. ELEKTRISCHE STEUERUNG 6. HYDRAULIKSTATION 7. HUB- und SCHIEBEBÜHNE 8. SENKLEITER 9. BRETTRANSPORT ZUR PAKETIERUNG 10. BRETTABKEHRBÜRSTE 11. BRETTWENDER 12. BRETTQUERTRANSPORT ZUR MASCHINE 13. BRETTMAGAZIN 14. PALETTENMAGAZIN 15. PALETTENTRANSPORT zur Paketierung 16. PAKETIERUNG Zange hebt Steinpaket vom Brett auf die Palette. 17. HÄNDISCHE UMREIFUNG 18. PALETTENABTRANSPORT aus der Halle 19. ca. 1900 PRODUKTIONSBRETTER 1250 x 1200 x 50 mm 20. 20 Stk. STEINFORMEN für Schalungssteine 15, 20, 25, 30, 40 cm Zwischenwandsteine 7, 10, 12 cm Hohlblocksteine 25, 30 cm Lecaphon 12, 15, 20 cm Lecablöcke 25, 30, 38 cm Deckensteine HL 18, 23, 30 cm 1 weitere Form MISCHANLAGE DAZU OPTIONAL Closed loop plant for production of formwork blocks, intermediate wall blocks, hollow blocks and ceiling blocks. working area 104 x 104cm. consisting of: 1. feeder conveyor belt to feed the machines hopper. 2. stationary production machine, board size 1250x1200mm, thickness 50mm, yom 1976. 3. transportation belt to the lifting ladder. 4. lifting ladder machine, 9 levels, belaying single boards. 5. electrical controller 6. hydraulic station 7. lifting and shifting ramp 8. dropping ladder 9. transportation line to packetizing equipment 10. brushing machine for the boards 11. turn over machine for the boards 12. transverse transportation equipment 13. board magazine 14. pallettes magazine 15. pallettes transporter to the packetizer 16. packetizer, pulls the blocks from the boards to the pallette 17. manual strapping 18. transportation line out of the hall 19. approximately 1900 production boards. 20. 20 moulds for formwork 15, 20, 25, 30, 40 cm intermediate wall 7, 10, 12 cm hollow block 25, 30 cm hollow block with clay Lecaphon 12, 15, 20 cm Lecablöcke 25, 30, 38 cm ceiling blocks HL 18, 23, 30 cm one more mould |
||
Mixer included | ||
